Electric Hot Rolling Press Electrode Calender Machine with Φ96mm Roller Size, 0.01mm Adjustment Precision, and HRC55 Hardness for Lithium Battery

Air pressure : 0.5 – 0.8 MPa

Separator roll core : 3 inch

Net weight : Approx. 110 kg

MOQ : 1

Roller Width : 120mm

Stack layer number : Max. 80 layers (adjustable)

Price : 8250 USD

Packaging Details : Wooden case

Place of Origin : China

Based Material Width : Max. 110 mm

Equipment size : L600 × W690 × H800 mm

Stacking accuracy : ≤ ±0.5 mm

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Brand Name : Gelon

Supply Ability : 500 sets/month

Certification : CE

Delivery Time : 35-40 days

Model Number : GN-DP200S

Contact Now

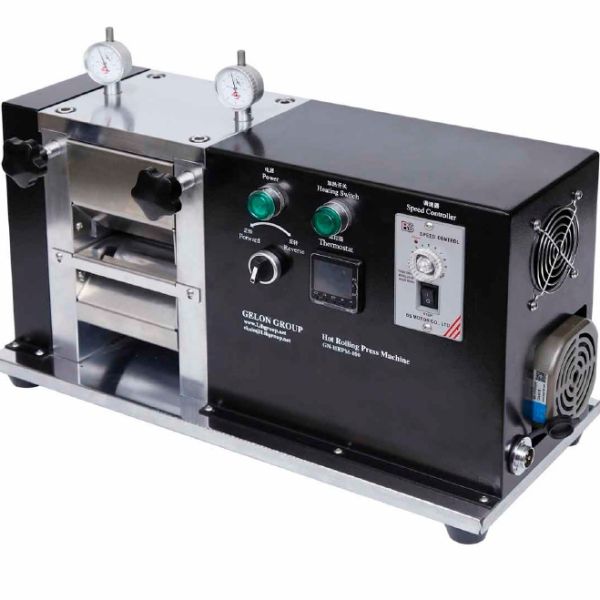

GN-MR-250H Electric Hot Rolling Press Electrode Calender Machine for Lithium Battery Li-Ion Production
This advanced electric hot rolling press is specifically engineered for lithium battery electrode calendering in laboratory and production environments.
Electric Hot Rolling Press Electrode Calender Machine with Φ96mm Roller Size, 0.01mm Adjustment Precision, and HRC55 Hardness for Lithium Battery Electric Hot Rolling Press Electrode Calender Machine with Φ96mm Roller Size, 0.01mm Adjustment Precision, and HRC55 Hardness for Lithium Battery Electric Hot Rolling Press Electrode Calender Machine with Φ96mm Roller Size, 0.01mm Adjustment Precision, and HRC55 Hardness for Lithium Battery
Contact for details
Email: Kimberley@libgroup.net
WhatsApp/Mobile/Wechat: +86-13686664348
Product Description
Overview
  • Designed for electric rolling of cathode and anode electrode battery materials, as well as nonferrous metals such as copper and aluminum in laboratories
  • Ideal for thinning and increasing density of lithium battery electrodes for clean energy applications
  • Gear transmission system for roller pressing with adjustable thickness and convenient operation
  • Rollers feature high hardness with hard chrome plating surface treatment, reaching HRC55 hardness and rust resistance
  • Wedge gap adjustment system provides stable operation with high precision
  • Independent temperature control for upper and lower rollers
  • Automated electric roller pressing with forward and reverse operation capabilities
Features
  • High hardness calendering rollers with hard chromium plating surface treatment for rust resistance
  • Inclined block gap adjustment system with excellent stability and high precision
  • Adjustable electrode thickness with forward and reverse calendering functions
  • Gear meshing rotation system for precise roller calendering
  • Speed regulating motor drive with inlet and outlet guide plates
Equipment Technical Parameters
Name Parameters Remarks
Roller Size Φ96mm
Roller Gap 0~1.2 mm (adjustable)
Roller Width 250mm
Effective Roller Width 245mm
Roller Gap Adjustment Precision 0.01mm
Upper/Lower Roller Heating Temperature Recommended heating temperature 60℃-80℃ Roller heating temperature Max: 100℃
Roller Hardness Surface hardness ≥ HRC55 Hardness Layer Thickness ≥ 10mm
Roller Drive Motor-driven Suitable for argon gas environment
Rolling Speed Adjustable
Power Supply AC220V/50Hz,110V/60Hz Customized
Power 2400W
Equipment Dimensions ≈L880*W260*H415mm Including dial indicator
Dimension after Packaging ≈L980*W400*H580mm
Net Weight of Equipment Approx. 102kg
Gross Weight of Equipment Approx. 124kg
Usage Site Can be used inside the glove box, please verify if the glove box space matches the equipment's outer dimensions
Warranty Period 1-year warranty, lifetime maintenance
